The open source thin client OS with RDP over UDP
for Windows Remote Desktop, RDS and VDI: FreeRDP with the UDP transport that upstream does not ship yet.

⬇ Download the ISO (latest release)  ·  Try it live, nothing installed  ·  Website  ·  Italiano

OpenThinRDP turns small PCs and old thin clients into kiosks that boot straight into a sign-in form and connect
to Windows: through an RD Connection Broker to the user's desktop or VM, or straight to a session host or to any
Windows PC with Remote Desktop turned on. They are managed from a shared folder with a small Windows manager: status
of every device, central settings, logo, signed updates, and the screen of any device in your browser. No agent,
no management server, no cloud, no licence per device.

Not openthinclient. OpenThinRDP is a new, independent project, not affiliated with openthinclient: the names
sound alike, nothing else is shared. openthinclient is an older project whose devices boot over the network (PXE)
from its management server; OpenThinRDP is installed on each device or runs live from a USB stick, needs no server
and is built around RDP with FreeRDP's UDP transport.

It grew out of a real migration away from a commercial thin client OS, on a fleet of Dell OptiPlex 3000 Thin
Clients connected to a Windows 11 VDI on Hyper-V, where the system it comes from runs every day.

Status: in production every day. It runs the whole thin client fleet of the company it comes from: 14 Dell
OptiPlex 3000 Thin Clients at desks, tills, a laboratory, weighing stations and a wall screen on Wi-Fi, on a
Windows 11 VDI on Hyper-V behind two RD Connection Brokers, signing in with Kerberos and NTLM as fallback. The
devices were converted in place from the system they ran before and take every release straight from the GitHub
releases, signed, installed during sessions and applied when the session is over. FreeRDP security releases reach OpenThinRDP within 7 days
(3.32.2: four hours). The ISO is tested in QEMU/KVM with Secure Boot at every release and the system tests run on
every commit (CI). What is in production,
what is only tested and what does not exist yet:
docs/status.md. Try it live, then on one device, before rolling it out.

RDP over UDP that keeps going on a bad line

It started with a faulty switch port losing 43% of the large packets: over TCP the remote desktop froze. We
reproduced that line, then raised the loss on every packet from the virtual machine step by step (Windows 11 VDI,
full-screen load changing every pixel, frame rate measured by the server):

* The other rows lose that share of every packet; this one 43% of the large packets and 5% of the small ones.
** At 70% the TCP connection RDP keeps beside the tunnel may end the session after 20 s without an
acknowledgement. One environment (Dell OptiPlex 3000 Thin Client, Windows 11 VDI on Hyper-V), loss emulated with
netem: the method and the scripts, to get your own numbers.

Getting there took a fix to FreeRDP's UDP transport, which we found and reported in
#13608, and which is now part of it. Every step and the TCP
numbers: docs/udp.md.

Who it is for

• You publish desktops with Windows Remote Desktop Services: RD Connection Broker with session hosts or a
  Hyper-V VDI collection. Or there is no broker at all: each device connects to one Windows PC or server (set
  its name instead of the broker), e.g. a reception desk that works on the PC in the office.
• You have x86-64 PCs or thin clients with UEFI (Secure Boot works) and want to keep them useful without a
  licence per device.
• You want to try RDP over UDP on real clients, or help bring it into FreeRDP.
• You need screens that only show a web page: hall TVs, dashboards, info points, production boards. The same
  system, no sign-in, the page chosen centrally (see below), so one image
  covers the whole fleet.

Not for you (yet): Citrix, VMware/Omnissa Horizon and other protocols (OpenThinRDP does RDP only), ARM devices,
PCs without UEFI.

Requirements

Tested hardware and firmware settings: docs/hardware.md.

Try it in five minutes

1. Download openthinrdp-<version>.iso and write it
   to a USB stick with any raw image writer (Rufus in DD mode, balenaEtcher, dd).
2. Boot the PC from the stick. The menu starts the live system by itself after 10 seconds: it runs from the
   stick and never writes to the disk.
3. With a network, when GitHub has a newer version than the ISO it asks whether to download it or to use the
   ISO's (no answer in 30 seconds: the newer one), so the ISO does not need downloading again for every release.
   Then the settings dialog opens: set the broker (or the name of a Windows PC) and the domain, save, sign in.
4. Like it? Restart and choose Install: it shows the disk it is going to erase and asks before writing
   anything (answer Yes to go on), then about three minutes. It installs on the first internal disk, never
   a USB disk (not even the installation stick). For rollouts, Unattended install skips the question.

What the device needs: Requirements.

What it does

• Remote desktop over UDP. Windows sends the graphics (and USB, sound and camera) over UDP and adapts frame rate and quality to the line
  instead of queueing: smoother on busy servers, lossy Wi-Fi and VPNs. The image ships FreeRDP built with the UDP
  transport that is still under review upstream (FreeRDP #13608).
  Per device: auto (UDP, TCP when UDP is blocked), udp (UDP only) or tcp. In our 3-hour test with packet
  loss, bandwidth limits, network cuts and killed clients the session stayed on UDP the whole time
  (results). See docs/udp.md.

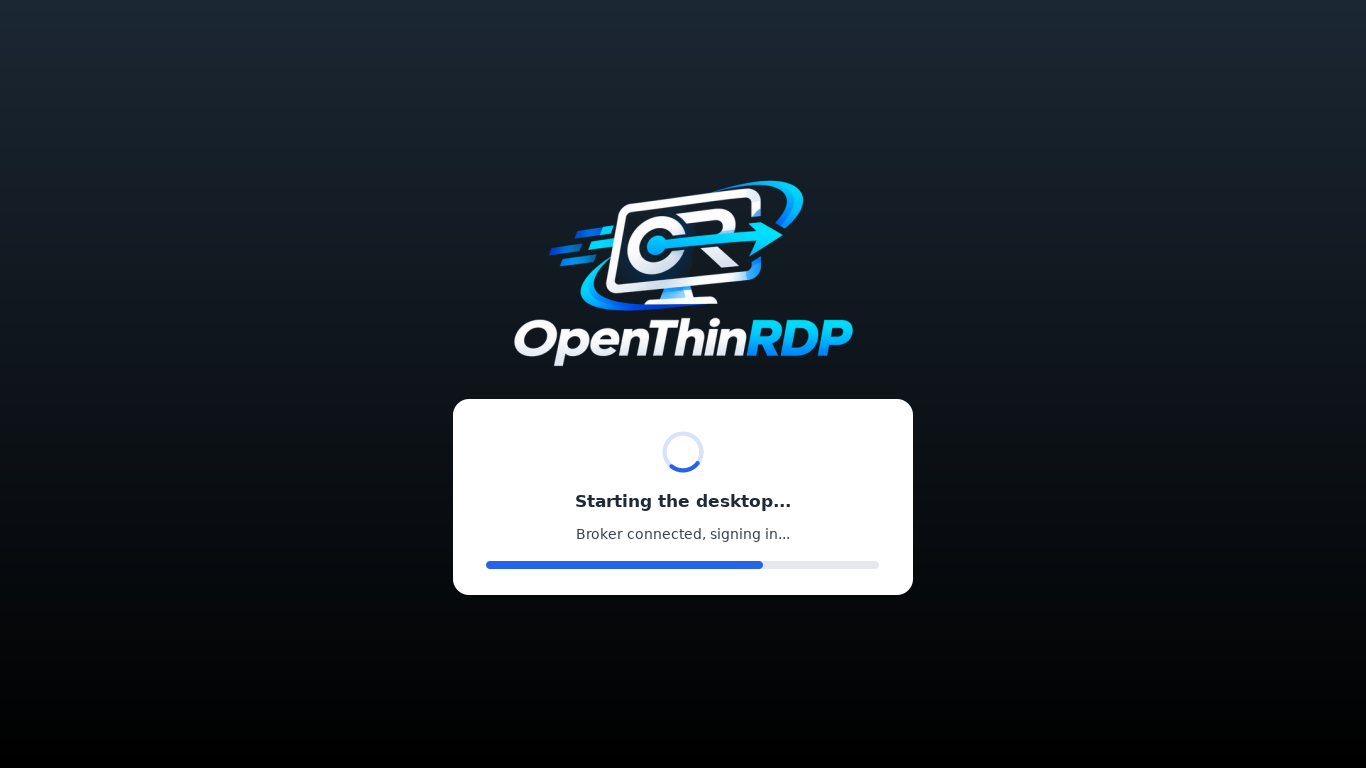

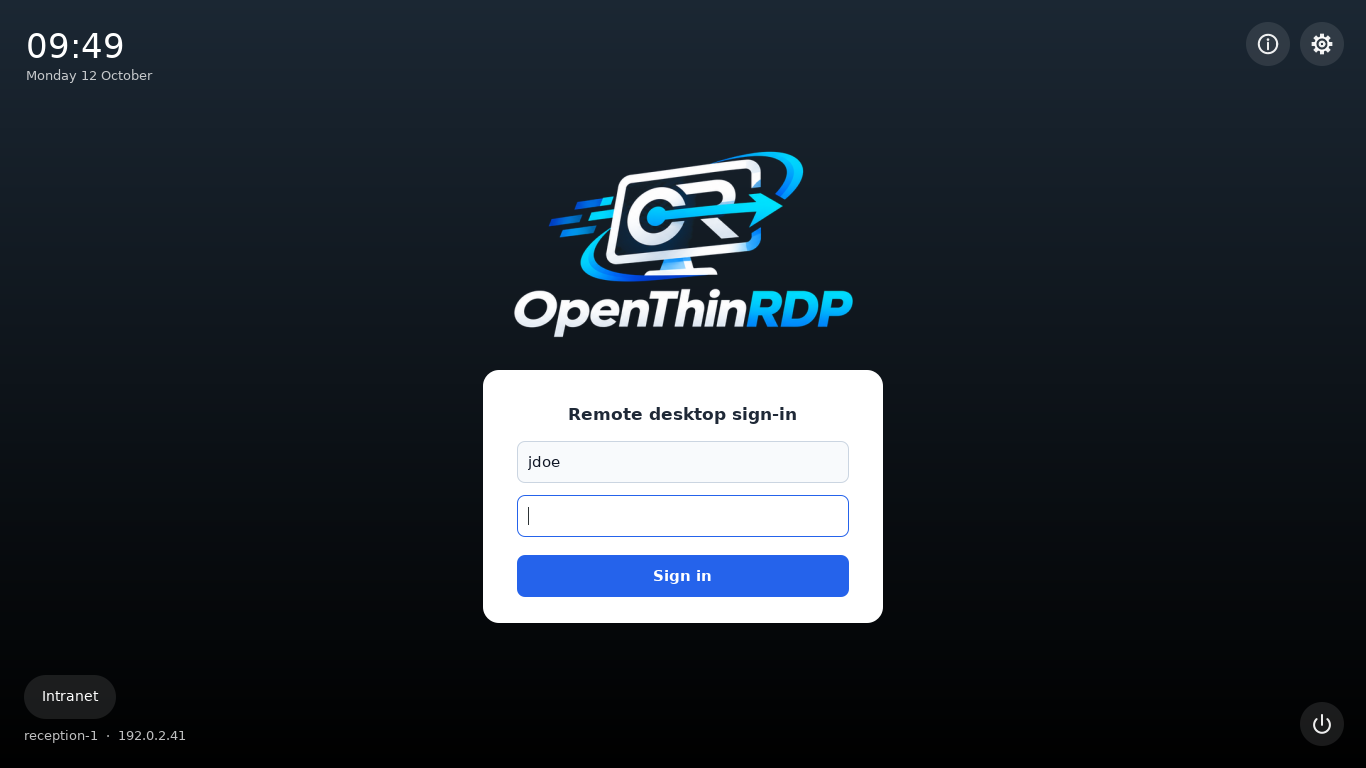

• Sign-in form, then full screen remote desktop. Boots in a few seconds with your logo, no desktop, no
  shell. Retries, fallback brokers, clear messages for "no network", "broker not reachable", "the virtual
  machine does not start", wrong password (never retried, so accounts are not locked). A virtual machine that is
  restarting or installing a Windows update gets "Waiting for Windows" (up to 20 minutes) instead of an error.

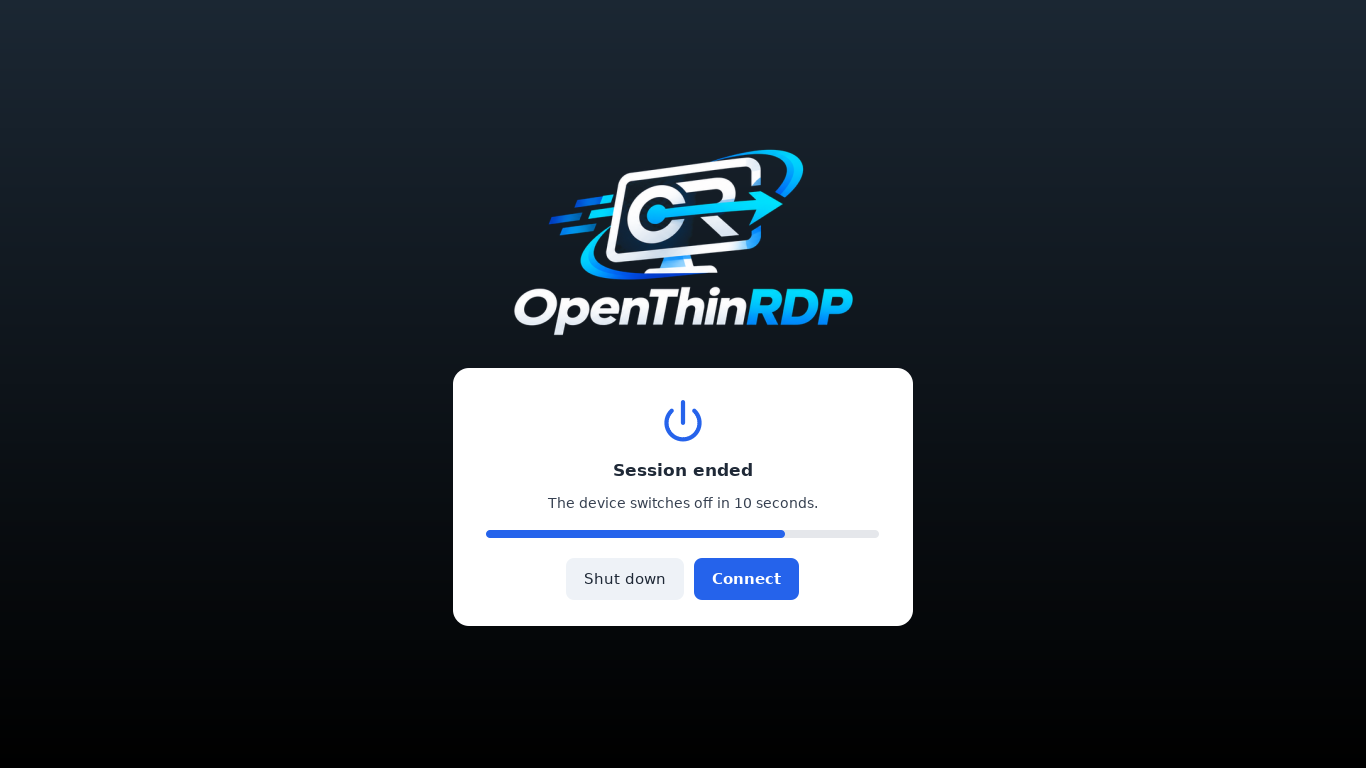

• Reconnects by itself after network drops, stops when the session is ended on purpose (sign out,
  disconnect, VM shut down by an administrator), and warns before taking over a session open on another device.
  A session taken over by another device shows "Session opened elsewhere" with Resume here.
• USB done right for VDI. Signature keys, tachograph keys and other special devices go to Windows as whole
  USB devices, also when plugged in during the session. Webcams and headsets work in meetings: the camera goes
  through the RDP camera channel and the microphone through the RDP audio channel, so Teams, Zoom and the browser
  in the session see both (a microphone passed as a USB device stays outside the remote session). Keyboards, mice,
  touch screens, hubs and network adapters stay local; smart card readers go through the smart card channel.
  Touch screens work as touch in Windows. With USB_MODE=disks USB sticks stay on the thin client and appear in
  Windows as drives; with USB_MODE=auto the thin client decides device by device: a stick as a drive, a device
  with storage and something else (an instrument, a key with its own driver) whole.
• Managed from a shared folder (SMB) with a Windows manager, no server: the whole fleet in one window, settings
  for all devices or one, and the remote screen of any device (the manager).

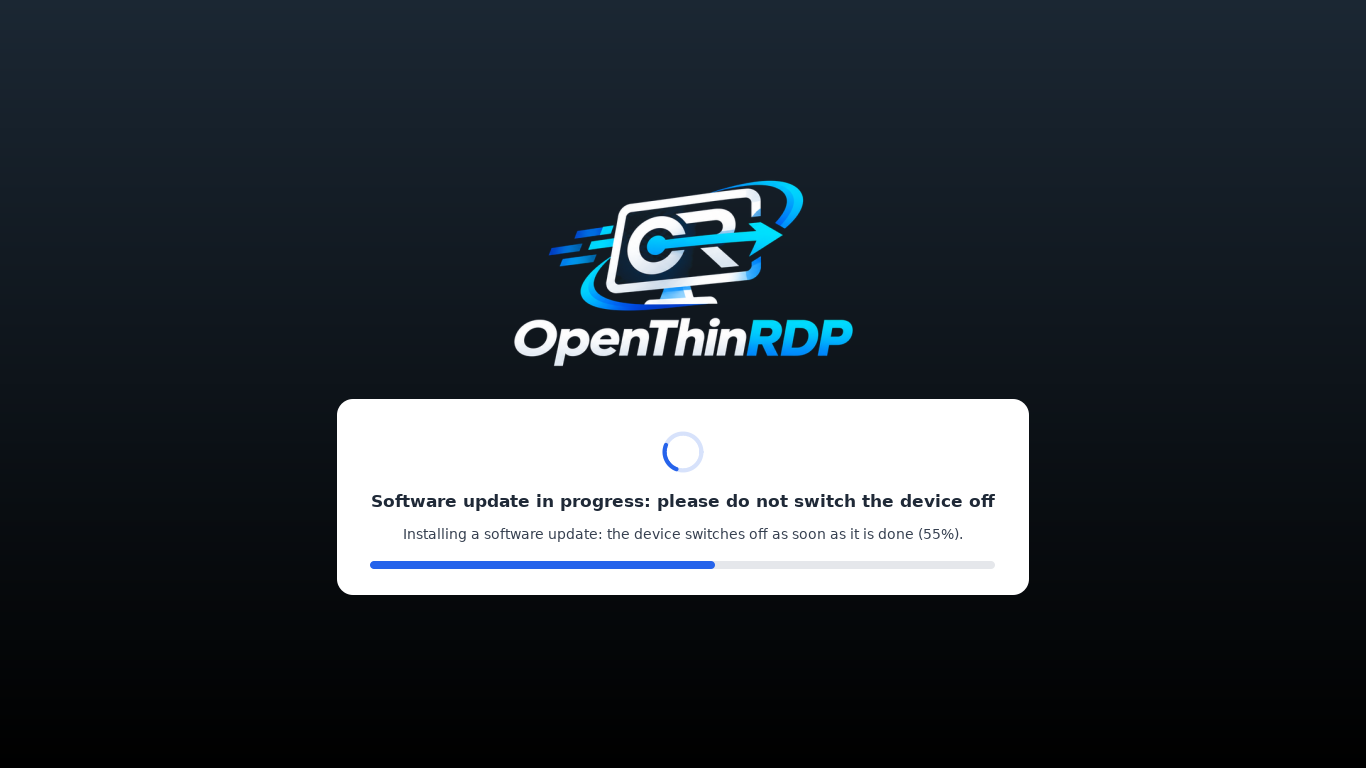

• Signed updates that never interrupt a session: from GitHub releases (checked every 3 hours, installed in
  the background, applied when the session is over), or from your folder when you decide.
  Debian security updates install by themselves.

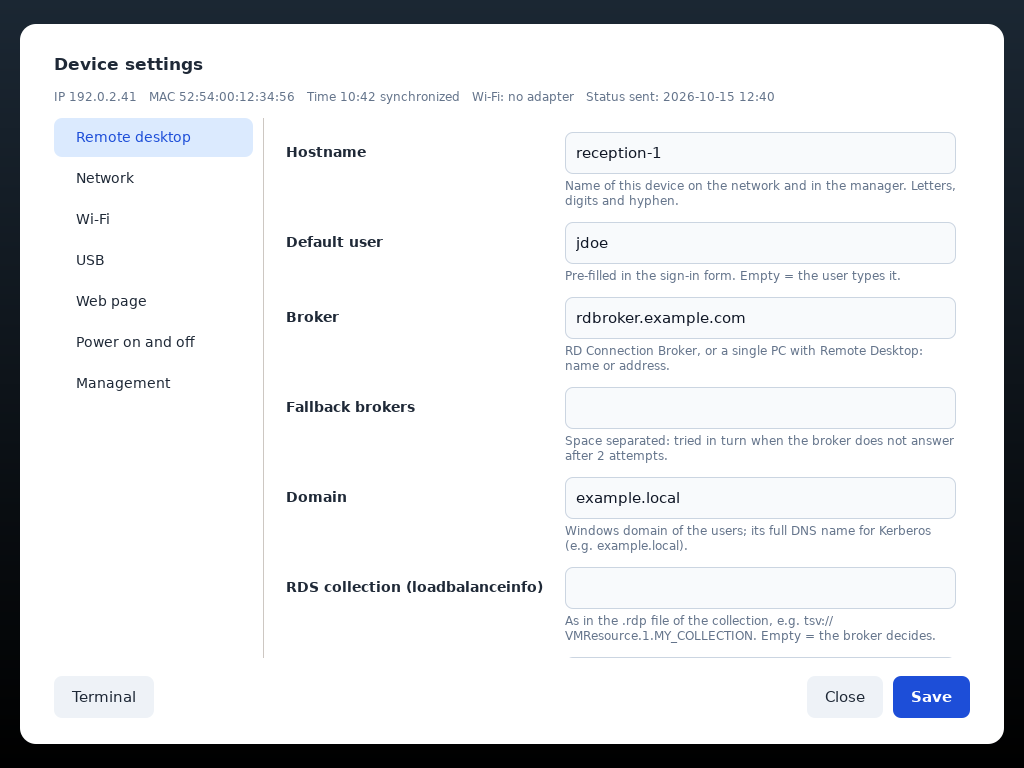

• Settings dialog on the device (optionally behind a PIN): broker or PC, network (DHCP, static, Wi-Fi),
  management folder and its account, USB mode, web button, power schedule, language. A new device names itself
  from its network card (thinclient-1a2b3c).
• Diagnostics for the help desk, no PIN needed (the ℹ button): network, can each broker or PC be reached,
  time, management folder, last events. Read only.
• Locked down: no desktop, no menus, no text consoles (Ctrl+Alt+F1..F12 do nothing), no password-less
  account.
• Several monitors become one remote desktop spanning all of them (MULTIMON).
• Power schedule and Wake-on-LAN, screen always on, monitors switched on late handled.
• Web button: a web app, free browsing, or a full screen kiosk page, with Chromium
  (screens that only show a web page).
• English and Italian interface; more languages are one file each.

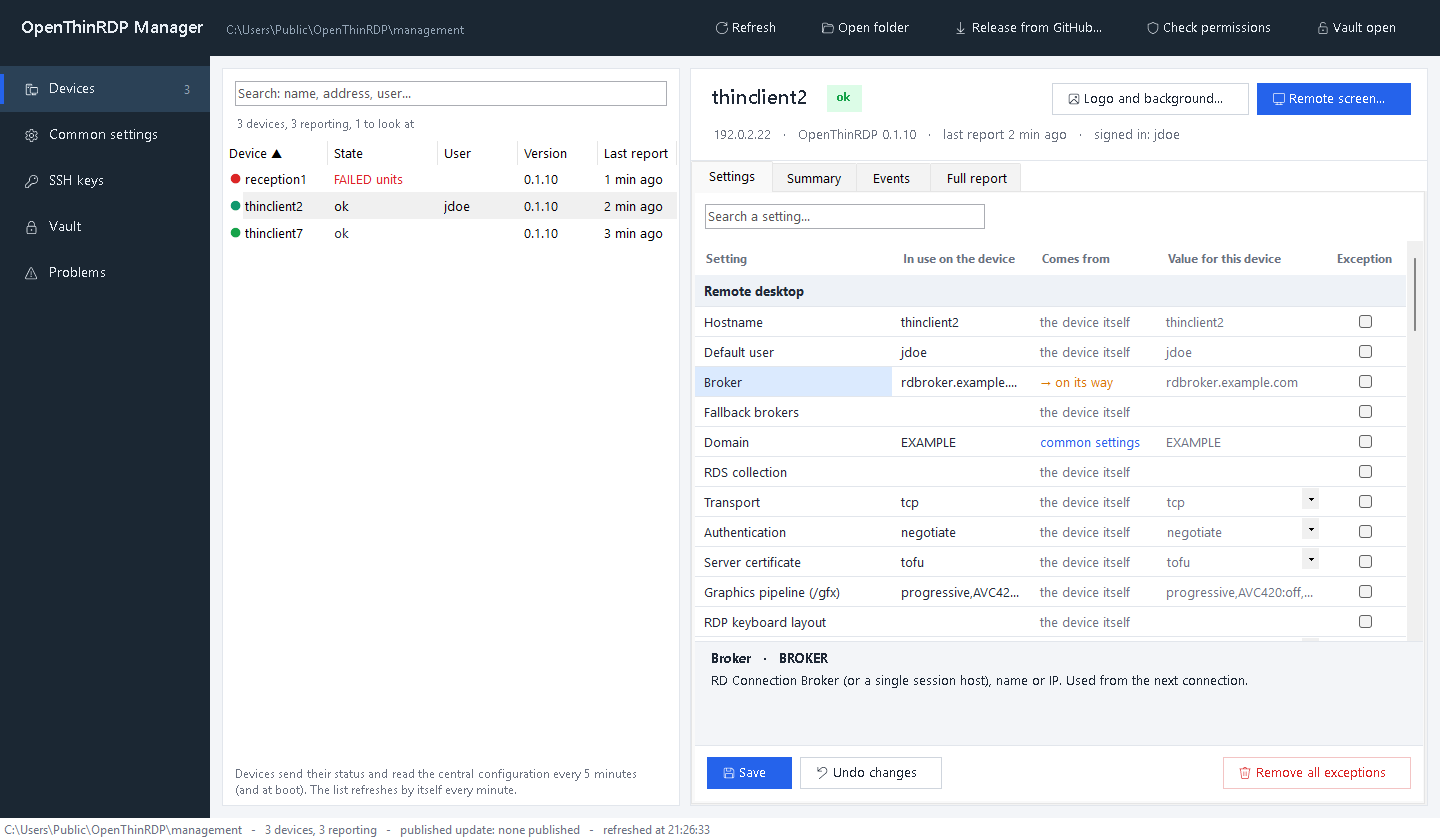

The manager: the whole fleet from one window

OpenThinRDP-Manager is one PowerShell script for Windows 10/11 (English and Italian, nothing to install) that works
on the shared folder the devices report to. No server, no agent, no database: what you see is the files in the folder.

• Every device at a glance: a list with the state of each device as a coloured dot, who is signed in, the
  version and the last report, with a search box; the selected device shows its address, a readable summary
  (network, software, FreeRDP, UDP or TCP in use, Wi-Fi, secrets) and its event log.
• Settings for all devices or one: for each setting, the value in use on the device, where it comes from (the
  device itself, the common settings or an exception for that device) and, in orange, a new value still on its way;
  the help of the selected setting in full under the list. Checked before saving (a device rejects a whole
  configuration with a wrong value, the manager stops it first).

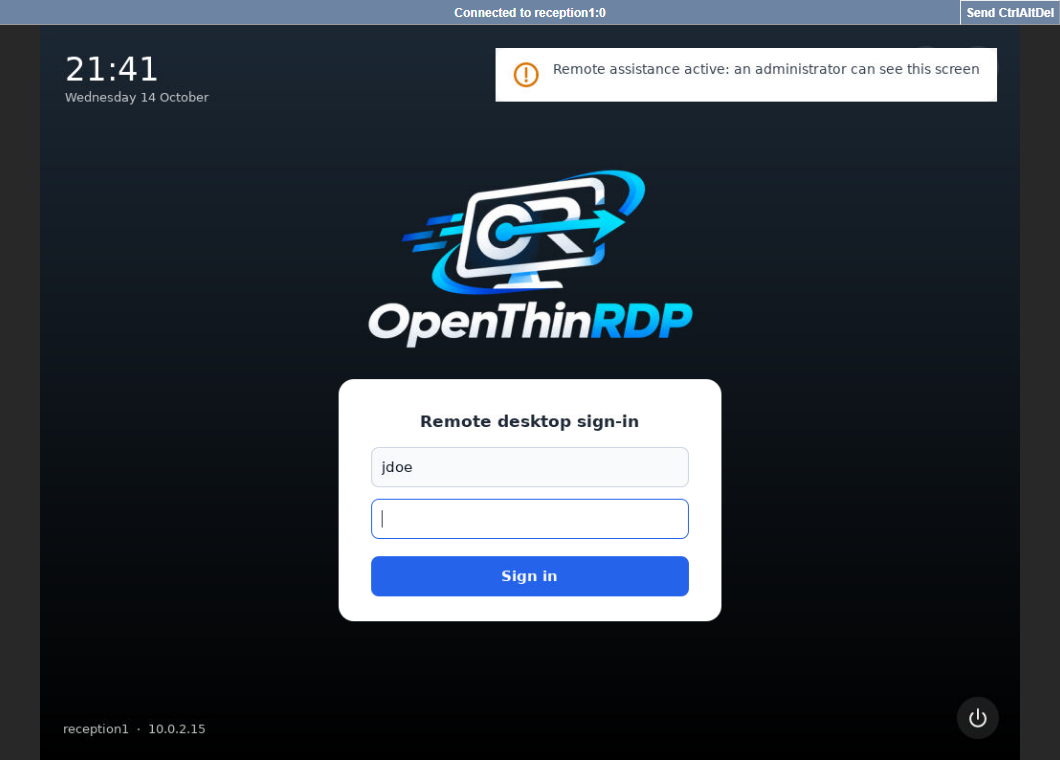

• Remote screen: one click shows the screen of a device in your browser and lets you use it, to help a user
  ("what does it say?") or to sign in once to a dashboard on a hall screen. It goes through SSH only, with the
  administrators' key and a one-time password: nothing new listens on the network, and nothing is installed on your
  PC (the ssh.exe that comes with Windows and your browser). The device shows Remote assistance active while it
  lasts and records it in its events; it ends when you close the window, or by itself after 2 hours, and
  REMOTE_SCREEN=off turns it off (details).
• Problems across the fleet: the event logs of every device read together and grouped, so "six devices could not
  reach the broker this morning" is one line instead of six logs.
• Logo and background picture, for all devices or one; SSH keys of the administrators (one button adds the
  key of the PC you are on, creating it if needed); releases from
  GitHub copied into the folder for devices that update from it; a permissions check of the folder.

Every change is written to a change log in the folder. Guide: docs/management.md.

Screens that only show a web page

The same image runs the screens that never need a Windows desktop: a TV in the hall, a dashboard in the
office, an info point, a board in production. With WEB_BUTTON=kiosk and KIOSK_URL:

• At power on the page opens full screen in Chromium: no sign-in, no desktop, no menus, no address bar.
• The page is set centrally, for every screen (config\common.conf), a group or a single one
  (config\<hostname>.conf) in the management folder. Change it and each screen picks it up within a few
  minutes and reopens the page, without a restart.
• It reloads itself every KIOSK_RELOAD_MIN minutes when nobody is touching it, so a page that went to an
  error after a network glitch comes back by itself.
• The power schedule switches the screens on and off (POWER_ON_TIME, POWER_OFF_TIME, POWER_ON_DAYS),
  on cable or Wi-Fi; status and events of every screen are in the management folder like any other device.
• Cookies and saved sign-ins stay across restarts. For dashboards behind a login, a link with an access token
  (offered by most dashboard tools) avoids signing in on the screen at all.
• Someone at the screen can still reach the sign-in form: it shows for 5 seconds before the page, and
  Ctrl+Shift+W closes the page. The settings can be locked with a PIN.

Settings: docs/configuration.md.

Why it is built this way

Why FreeRDP is not updated automatically. Debian security updates install by themselves, but FreeRDP is
excluded. First, the image ships its own FreeRDP build with UDP, which Debian's packages would replace with a
version without it. Second, the remote desktop client is the part users depend on: a new FreeRDP version can
change how sessions, USB devices, smart cards or the graphics behave, and on a fleet a regression stops everyone
at the same moment. So FreeRDP comes with OpenThinRDP releases, after testing on real devices, and you can still
keep it as it is on one device (/etc/openthinrdp/freerdp-pinned).

Why UDP from a pull request that is not merged yet. Over TCP, a busy server or a lossy line makes the screen
fall behind; over UDP, Windows lowers quality instead. The pull request is solid in our tests, and the only way
it gets merged is people using it and reporting. TRANSPORT=tcp is one setting away, and the image follows the
upstream code as it changes.

Why a shared folder instead of a management server. Every Windows network already has a file share and
someone who can manage permissions on it. The devices only read and write files there, so there is nothing to
install, patch or license on the server side, and the settings are plain text files you can read, diff and back
up.

Why Debian. Stable, security updates for years, every driver and firmware package, and a kiosk on top of it
that you can read: the whole client side is a few shell scripts in rootfs/opt/openthinrdp.

How it compares

If you need Citrix or Horizon, vendor support or certified hardware, the commercial systems are the right
choice. OpenThinRDP is for networks built on Windows Remote Desktop that want a free, open client that is simple
to manage, and for anyone who wants to put FreeRDP's UDP transport to work. Product names are trademarks of
their owners; the comparison reflects public information and our understanding, corrections are welcome.

What comes next

Ideas we would like to build, roughly in this order. Tell us in an issue which ones you need, or send a pull
request:

• VPN: WireGuard and OpenVPN, so a device at home or in a branch office reaches the broker on its own.
• RD Gateway: Remote Desktop over HTTPS from outside the network, without a VPN.
• Wi-Fi with 802.1X (WPA-Enterprise) and wired 802.1X.
• Network installation (PXE) for many devices at once.
• More tested hardware and more languages (one file each).

Build your own image

Your logo, your broker, your settings and keys built in (Linux with Docker or Podman):

cp -r image/site.example image/site      # then edit image/site/site.conf and build.conf, add your logo
image/build.sh

The result is out/openthinrdp-<version>.iso. See docs/building.md.

Documentation

• CHANGELOG.md: what changed in each release.
• docs/status.md: what is in production, what is only tested, what does not exist yet.
• docs/configuration.md: every setting.
• docs/management.md: the management folder, central settings, SSH keys, signed updates.
• docs/building.md: building and customizing the image.
• docs/security.md: security model and known limits.
• docs/hardware.md: tested hardware and firmware settings.
• docs/udp.md: the UDP transport and the FreeRDP the image ships.

Layout

Contributing

Issues and pull requests are welcome. Please describe the hardware and the Windows side (broker, session
host version) for anything related to connections or devices. See CONTRIBUTING.md and the
code of conduct.

Security problems: please report them privately, see SECURITY.md.

License

Apache License 2.0, see LICENSE. OpenThinRDP uses FreeRDP (Apache 2.0), the noVNC viewer for the remote
screen (included unmodified, MPL 2.0 and BSD, rootfs/opt/openthinrdp/novnc) and Debian packages under
their own licenses. Windows and Remote Desktop are trademarks of Microsoft; this project is not affiliated with
Microsoft or with any vendor named above.
